CHIP CONVEYORS
-
- Hinged Belt Conveyors
-
‘UNII MAG’ Hinged Belt Conveyors offer a very effective means of managing heavy metal and stringy chips. When chips fall from the machine tool they land on the top surface of the conveyor belt, where they are conveyed directly to the bin. They can also install to convey semi-finished and finished parts such as screws, nuts, and stampings. The hinged belt is made up of extra heavy-duty sheet and the perfect guiding ensures minimum friction and noise free operation. Available in various configurations straight or inclined up to 75˚.
Application:
• CNC Turning center • CNC Machining center • Multi spindle Automats • SPMs, etc.,
-

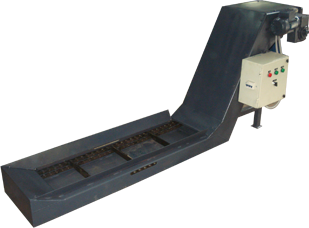

- Wiper type or Scraper type
-
‘UNII MAG’ Wiper type chip conveyors are best utilized in applications where materials such as cast iron, bronze, and brass are being machined both in dry and wet condition. These metals generally produce smaller chips that tent to nest together. Chips directly fall to the bottom of the conveyor and the wiper attached to the roller chain moving on guides scrap the material along the bottom of the body. Available in various configurations, straight or inclined from up to 75˚.
Application:
• CNC Turning center • CNC Turning center • CNC Machining center • Gear hobbing & Shaving machines • SPMs, etc.,
-

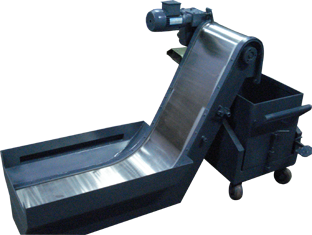

- Magnetic Chip Conveyors
-
‘UNII MAG’ Magnetic chip conveyors are designed to convey ferrous chips like small bits and powder from the coolant. The moving permanent magnets mounted on endless chain underneath the stainless steel sheet attract ferrous chips and slide them over the sheet to discharge end. Separated coolant passes to the tank.
Application:
• Gear Hobbing • Broaching Machines • Gun Drilling • Presses, etc.,
-

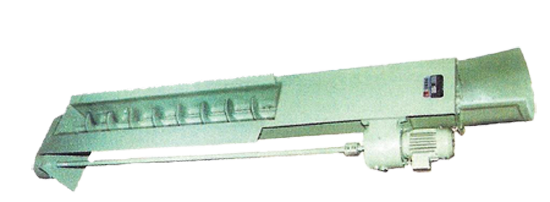

- Screw Conveyors
-
‘UNII MAG’ Screw conveyors are ideal for limited space available. Wherever other conveyors could not be installed, we can go for screw conveyors. These can be used to handle powdered or broken chips. Available in various diameters to handle different volume of materials.
Advantages:
•Tailor made to suit specific need. • Manual chip removal can be avoided.
• Increase productivity. • Reduce machine down time and labor cost.
-
- Dual Conveyor with Drum Filter
-
'UNII MAG’ Dual Conveyor with Drum Filter is used for both ferrous and non ferrous particles.
