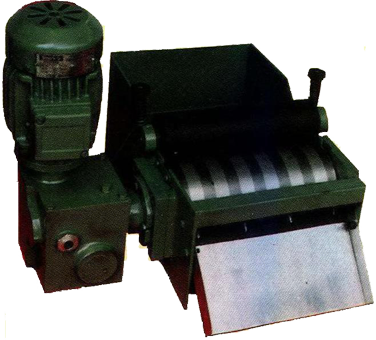

‘UNII MAG’ Magnetic Separator is a fully Automatic unit designed for filtering coolant / oil contaminated with ferrous particles. Contaminated coolant from machine passes through the high-powered permanent Magnetic rotary drum. The swarf attracted by magnetic drum is squeezed by Synthetic rubber roller and it is scrapped and collected separately into a dust-collecting bin. These are lightweight, compact designed and can easily be installed anywhere. It filters almost 95% for ferrous particles. Available in various capacities from 50 to 1000 LPM.

Magnetic Separator with grooved type also available where ferrous particles are in the form of grains/ small bits. Area of contact with magnetic drum is also more.

Application:

• All type of Grinding Machines • Wire drawing • Rolling mills. • Honing machines
• Reaming machines • Gear Shaving Machine

UNII MAG’ Paper Band cum Magnetic Separator is for efficient filtration of magnetic and non-magnetic contaminants. The contaminated coolant is first passes through the magnetic filter which separates almost 95% of the ferrous particles and thus reducing the load on paper band filter and consumption of paper. Then the coolant is passes through the paper band filter where non-magnetic and left out magnetic particles removed and ensures positive filtration of order of 20 microns. The float mechanism senses the contaminated coolant level on the paper. If the paper chokes, it triggers the endless conveyor to bring the fresh paper in position automatically. Available from 50 to 1000 LPM.

Paper Band Filter alone can be used for non-ferrous filtration.

Application:

• Grinding Machines • Honing machines • Rolling mills. • Spark Erosion
• Thread grinding and Gear Grinding.

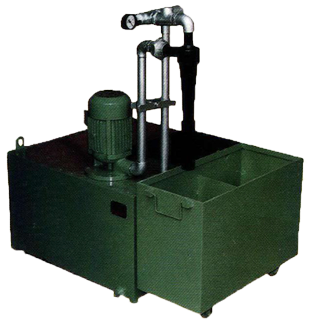

‘UNII MAG’ Hydro cyclonic filter removes both ferrous and non-ferrous contaminates. It works on principle of vortex. From the tank the contaminated coolant is pumped tangentially into the cone at high pressure. Due to cyclonic effect contaminants are separated out through the nozzle at the bottom. The clean coolant rises and discharges through the outlet of cyclonic head to the machine. Hydro cyclonic cones are made of highly wear resistance polymer. No moving parts hence least maintenance. Filtering accuracy about 15-20 microns and available in range from 50 to 500 LPM.

Applications

• Grinding Machines. • Honing Machines.

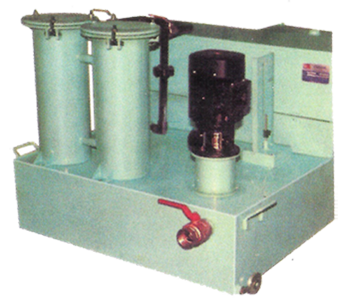

‘UNII MAG’ Cartridge/ Bag filter is used for very fine filtration up to 5 micron, Pre-filtered coolant is pumped through a cartridge/bag element which is placed in a housing and we can get pure coolant with high degree of filtration.

Advantages:

• Highly Efficient way of filtration. • Positive improvement of surface finish
• Increase tool life and Machine life. • High dimensional and Machining accuracies
• No manual attention is need

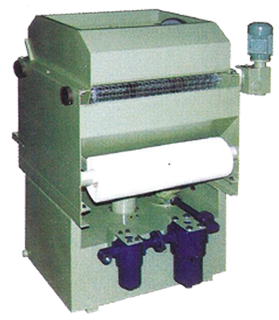

‘UNII MAG’ Compact Paper band filter is used to minimize the space occupation. Compared with ordinary Paper band filter, only 30% of space is required. Higher capacities can be replaced and installation can be done easily on the top of tank itself.
